Transmission Chain of Power 1 Meter 10x10mm Wire Carrier Cable Drag X Holder Chain Bridge Non-Opening CNC Router Machine Tools Towline Transmission Parts Transmission Chain of Power(R28)

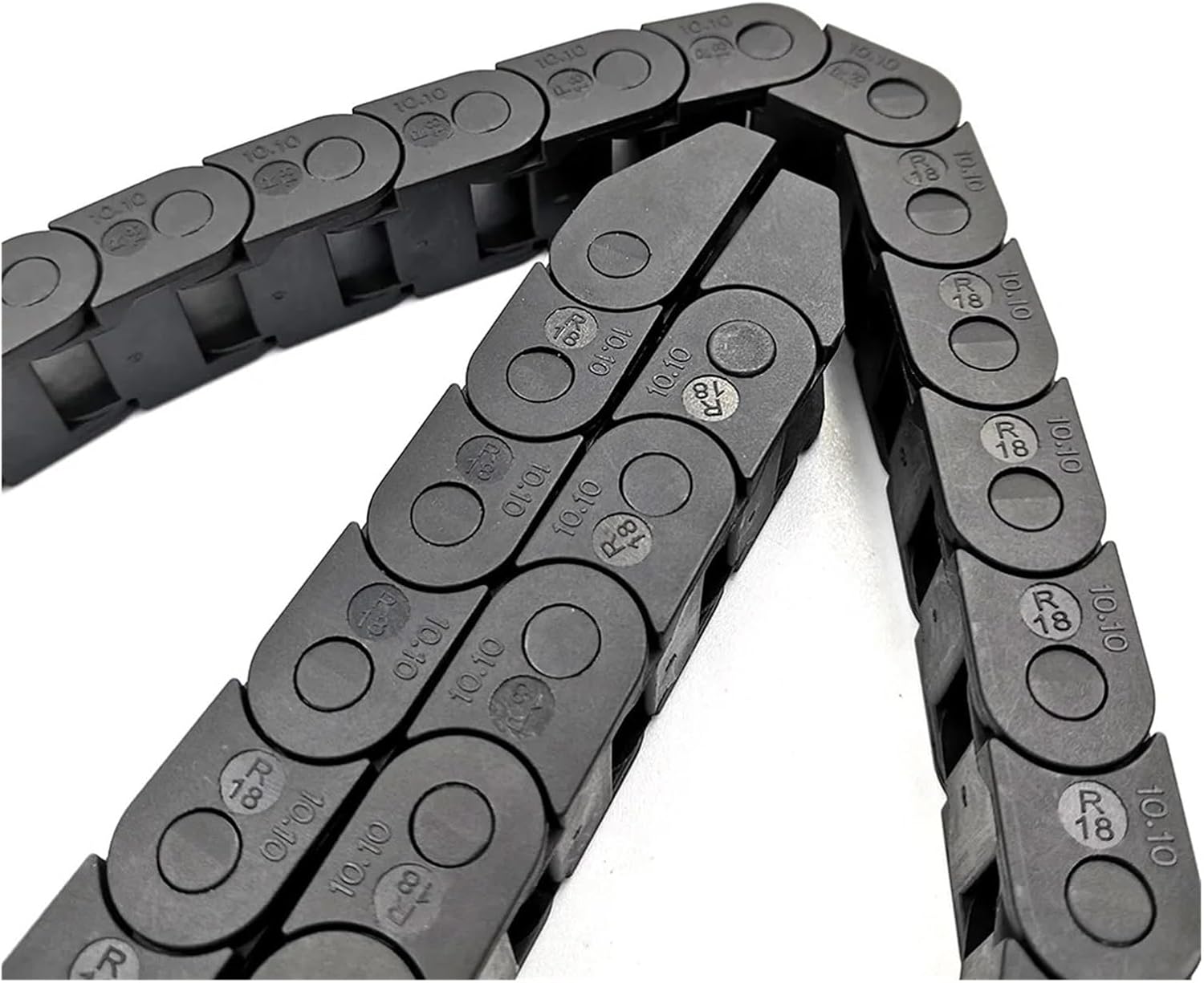

10X10mm Wire Carrier Cable Drag Chain For CNC Router Engraving Machine Roller Plastic Transmission ChainPackage Included:Drag chainX1 Meter (Include the end connectors)Uses and Features:1) Suitable for use in a reciprocating motion of the occasion, can be built-in cable, tubing, pipe,plumbing, etc. play traction and protection.2) Each section towline can open, easy installation and maintenance. Exercise low noise,wear-resistant, high-speed movement.3) The towline has been widely used in CNC machine tools, electronic equipment, stone machinery,glass machinery, doors and windows machinery, injection molding machines, robots, overweighttransportation equipment, automated warehouses.Plastic towline structure:1) The towline shape like tanks chain, composed by a large number of unit links between therotating freely link.2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.3) Unit chain around the chain plate and the upper and lower cover composition, towline can openeach section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe,etc. into the towline after opening the cover.4) Also available separators, the chain separated by space as needed.Towline selection of main parameters:Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap byoverlapping the actual height as the reference height.Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as thetowline wide reference, and stay at least 10% of the width of the space.Bending radius R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space.Use towline length = R + 0.5R + stroke / 2After bending towline total height = 2R + external highTowline place principles:Should leave 15% of the remaining space for built-in cable, tubing, etc., may move freely in theradial direction of the towline does not produce tension. Larger diameter difference between thewire should be laid separately, weight distribution, if necessary, be separated by the dividing sheet.In the high-speed or high-frequency operation, to try to make the wires apart from each other on a level, do not make it mutually stacked more time in the cable, pipe, tubing, etc. is recommended to use separators.==========Hign-concerned Chemical : NoneTensile Strength : 1178kg/cm2Type : Leaf ChainStandard or Nonstandard : StandardMaterial : plasticInner high * inner width : 10x10mmOuter high * outer width : 13.5x18mmPitch : 16mmPer meter section : 63Open mode : Non openingJoint hole pitch : A=8mmType : Bridge typeMax outer diameter of cable : 8mmLength : 1000mmCustomized : YesPlastic : Stock

• Hign-concerned Chemical : None
• Tensile Strength : 1178kg/cm2
• Type : Leaf Chain
• Standard or Nonstandard : Standard
• Material : plastic
